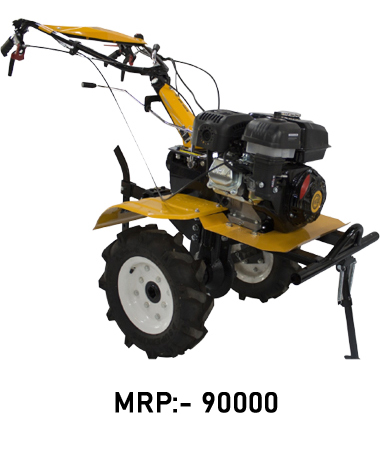

Texas Lilli 632 TG
- Home / Products / Power Weeder / Texas Lilli 632 TG
Technical Specifications
- Engine :- TEXAS Power Line TGH170F
- Type :- Four stroke, single cylinder, inclined, air cooled,petrol engine
- Bore/Stroke (mm) :- 70/55
- Capacity (cc) :- 212
- Valve Clearance (mm) :- In:0.10; Ex:0.15
- Max.Power Kw/H.P :- 5HP@3380 Rpm 632-tg.html
- Max.torque (Nm/rpm) :- 15.17 /2700
- Compression Ratio :- 8.5:1
- Fuel :- Petrol
- Fuel Tank Capicity (l) :- 3.6
- Av.fuel consumption (l/h) :- 1.0
- Lube oil Grade :- 15W/40
- Lube oil Capacity (l) :- 0.6
- Lubrication System :- splash
- Spark plug elctrode gap (mm) :- 07 to 0.8
- Starting System :- Manual recoil
- Mass (kg) :- 15
Transmission
- Type of drive :- Gear
- Clutch :- Wet, friction disc multiplate
- Transmission Type :- Sliding mesh
- No of speeds :- 02 forward; 01 reverse
- Oil grade :- SAE 90
- Oil capacity (l) :- 2.0
- Handle Bar :- Adjustable
- Max.Working width(mm) :- 870
- Working depth (mm) :- 100
- Av.rate of working (hr/acre) :- 2.5
- Mass (kg) Eng+Trans :- 78
Special Features
- Four stroke, single cylinder, air cooled, petrol engine
- Fuel consumption is about 0.8 to 0.9 lts per hour only
- Compact design
- Low running cost, less maintainance.
- Less vibration, easy to handle
- Quick after sales service
- Adequate spares parts stock
- Direct PTO to transmission, no belts, no chains- no power loss
- Multiplate wet clutch-zero slippage
- Light weight heavy duty aluminium die-casting transmission case
- Multi functional-Tilling, weeding, ploughing, ridging, water pumping, spaying,haulage etc., & many more jobs can be done
- Transmission PTO is available
